Характеристики

Type: Spray Drying Equipment

Application: Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Condition: New

Voltage: 380V/460V/Customizable, Client Local Standard

Power: See Technical Parameter List

Dimension(L*W*H): See Technical Parameter List

Key Selling Points: Multifunctional

Warranty: 1 Year

Weight (KG): 1000

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction worksÂ , Energy & Mining, Food & Bevera

Showroom Location: None

Marketing Type: New Product 2020

Machinery Test Report: Provided

Video outgoing-inspection: Provided

Warranty of core components: 1 Year

Core Components: Bearing, Pump, Gear, Motor, Gearbox, Engine, Pressure vessel

Evaporation Capacity(kg/h): See Technical Parameter List

Heating Method: Electric Gas Oil Heating

Material: SUS304, SUS316

Product Name: Centrifugal Spray Dryer Equipment

Application Field: Chemicals Foodstuff Medical Pharmaceutical Industrial Processing

Application Material: Liquid

Equipment Material: Stainless Steel304/316/Carbon Steel

Heating Source: Electricity Steam Oil Gas

Keywords: Centrifugal Atomizer Spray Dryer

Advantage: Easy Operation High Efficiency

MOQ: 1set

After-sales Service Provided: Service Machinery Overseas

Основная информация

Оплата и доставка Условия

Packaging Details: Standard Wooden Case Packing for Centrifugal Spray Dryer Equipment

Supply Ability: 50 Set/Sets per Month Centrifugal Spray Dryer Equipment

Характер продукции

Food Industry Automatic High Speed Centrifugal Spray Dryer Equipment

Product Overview

Brief Introduction:

Spray dryer is a kind of continuous atmospheric desiccator. Spray liquid material into mist with special equipment to make it dry in contact with hot air. It is used for drying some heat sensitive liquids, suspensions and viscous liquids, such as milk, eggs, tannins and drugs. It is also used for drying fuels, intermediates, soap powder and inorganic salts.

Features And Advantages:

The drying speed is fast, the surface area of the material liquid is greatly increased after atomization, and 95% - 98% water can be evaporated instantly in the hot air flow. The drying time is only a few seconds, which is especially suitable for the drying of heat sensitive materials. The product has good uniformity, fluidity and solubility, high purity and good quality. The production process is simplified and the operation control is convenient. For the liquid with moisture content of 40-60% (special materials up to 90%), it can be dried into powder products at one time. After drying, there is no need to crush and screen, so as to reduce the production process and improve the purity of products. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, which is very convenient for control and management.

Application Field:

Food and plants: Oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.

Carbohydrates: Corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate and the like.
Chemical Industry: Battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica and so on.
Ceramics: Alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.

Product More Pictures

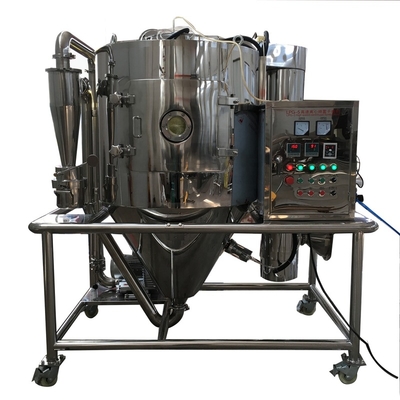

Smaller Model:

Larger Model:

Our Equipments on Customers' Site:

Working Principle

After being filtered and heated, the air enters the air distributor at the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The high speed centrifugal atomizer at the top of the tower (swivel) is atomized into tiny droplets of mist, contacting with the hot air and flowing into the finished product in a very short time. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the waste gas is discharged by the induced draft fan.

Product Parameters

Our Spray Dryer can be customized. If you need a customized or larger model, please feel free to contact us.

Model	WTPG05	WTPG25	WTPG50	WTPG100	WTPG150
Inlet temperature (℃)	140~350 automatically control
Outlet temperature (℃)	80~90
Max. water evaporation capacity (kg/h)	5	25	50	100	150
Centrifugal spray nozzle rotation mode	Compressed air transmission	Mechanical transmission
Rotation speed (r.p.m)	35000	20500	17600	17600	15500
Spray disc diameter mm	50	108	120	130	150
Heating source	Electric	Electric+ steam	Electric+steam, fuel oil and gas
Max power of electric heating (Kw)	9	36	63	81	99
Dried powder collection rate	≥95	≥95	≥95	≥95	≥95
Dimension (m)	1.80.932.2	32.74.26	3.73.25.1	4.64.26	5.54.57

Product Packaging

Company Profile

Why Choose Us:
We sincerely invite you to be our long term relationship friend , and we always prepared to provide our best services for you and would like you to know below we want to present:
1. Each machine is manufactured by professional experienced staff.
2. 12 months warranty + 100% QC inspection Before Shipment.
3. Overseas services provided. Technicians can be sent to spot for guiding the installation and debugging. Training operators and accomplish the commissioning.
4. Consultant services for whole machine life, 24 hours technical support by email and phone.When warranty date expired, lifetime maintenance service is provided and at buyer’s cost.

Our Achievements And Honors:
Our company has professional engineers with strong new product development ability, and can develop equipment products according to the actual needs of customers. Our company has ISO 9001 certification, CE certification and other relevant authoritative parts of professional identification and recognition.

Our Pursuit:
Facing the fierce market competition, our company is relying on its own advantages, integrating external resources, optimizing internal management, constantly exploring and innovating, and striding forward in the direction of business specialization and diversification. Our company adheres to the business philosophy of quality and service, and wholeheartedly provides high-quality products and services for new and old customers to meet the needs of customers to the maximum extent. Serve customers, achieve customers, sincerely look forward to cooperating with new and old customers to create a better future. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of
experienced and qualified professionals, who have sound knowledge about the quality of our medical machinery.

Our Factory:
LIAOYANG WINTECH INDUSTRIAL CO., LTD, takes Drying Equipment and Centrifugal Filter Equipment processing and manufacturing as the main industry, main products are Spray Dryer, Vacuum Rake Dryer, Drying Oven, Fluid Bed Dryer, Drum Dryer, Horizontal Decanter Centrifuge, Disc Centrifuge, Tubular Centrifuge, Flat Series Centrifuge, CO2 Supercritical Extraction Equipment, and corresponding supporting equipment, eg. food line, pharmaceutical line, chemical line. At the same time, to undertake standards and non-standard products. Our equipment is exported to Europe, America, Southeast Asia, Africa and other countries, and has been praised by foreign customers.

FAQ

1. What data is required to confirm the model?
(1) Materials to be dried (2) Treatment capacity per hour (3) Moisture requirements before and after drying

2. What certificates do you have?
We can provide CE, ISO 9001, etc.

3. What is the warranty period of the equipment?
Normally 1 year warranty.

4. Can we visit your factory?
Of course, we sincerely invite you to visit, if it's not convenient for you, you can visit our factory and solve problems through video conference.

5. Can we bring our own materials to your factory for experiments?
Of course, you are welcome at any time. We will arrange professional engineers and technicians to do experiments and analyze data for you on site.

6. Can it be customized?
Of course, our equipment can be customized according to the actual requirements of customers.

7. How long is the construction period?
It's about 30 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.

8. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to install and debug on site.
